OUR MARKETS

• Military:  (Communication, Electronic Warfare, & Radar) HF, VHF, UHF, L-Band, S-Band, C-Band, X-Band

• Commercial:  AM, FM, VHF, UHF, Cellular, Digital UHF, & Satellite Radio

• Industrial:  EMC, Medical, Semiconductors, & Industrial Heating

• Test & Measurement:  Commercial Test Facilities, University Labs, & Government Test Facilities

OUR PASSIVE COMPONENTS

• High Power, Multi-Octave Performance:                DC to 10 GHz. 5 W CW to 100 kW CW

• Mismatch Tolerant® Designs:                             Operate, at Rated Power, into a Severe Load Mismatch

• Tolerate Severe Input Unbalances:                          Most Designs Tolerate a Full Input Failure

• Tolerate Extreme Environmental Conditions: Designed or Tested to MIL-STD-810 Specifications

RF Combiner

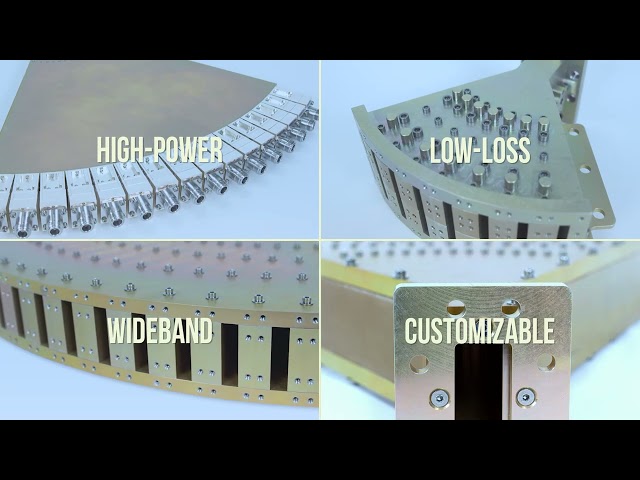

E-PLANE COMBINERS

A NEW CLASS OF PATENTED MICROWAVE POWER COMBINERS WITH EXREMELY HIGH POWER HANDLING CAPABILITY

This Combiner class is designed to operate over the full bandwidth of a given waveguide connector. Furthermore, the CW power handling of each Combiner is only limited to the power rating of the specific waveguide connector utilized. More Bandwidth and Higher Power Handling.

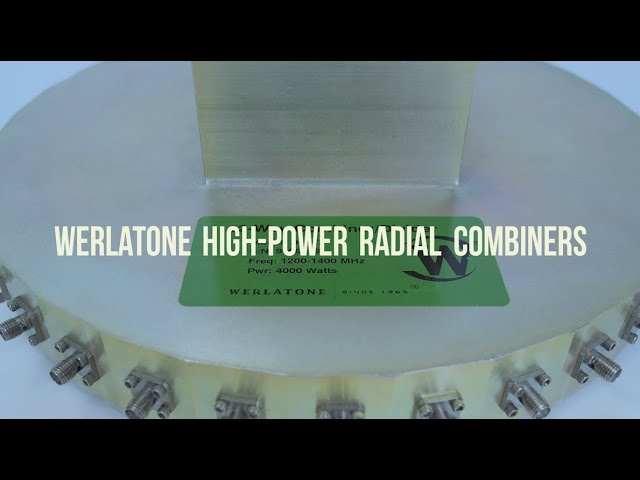

CW Power limitations of a Radial Combiner structure are removed as there is no longer a Coaxial to Waveguide transition limiting your CW Power and/or higher Duty Cycles at Peak Power operation.

  • Compact Planar Structures Ideal for Compact Solid State Systems
  • High CW Power and Longer Duty Cycles
  • Scalability to S, X, Ku, & Ka Bands
  • Very Low Insertion Loss
  • Excellent VSWR, Amplitude Balance, & Phase Balance
E-Plane Combiner Model D11839
Quad Transformer
IMPEDANCE-TRANSFORMING QUADS & BALUNS

WERLATONE’S NEWEST STRIPLINE TECHNOLOGY

Werlatone’s Transformers and Power Combiners are designed to minimize loss where it matters most, at the output of the transmitter.

Our self-shielded ferrite-loaded designs exhibit half the loss of competing designs, in a smaller size.

  • More Freedom Outside Traditional Quadratures & Baluns
  • Operating Bandwidths up to 10:1, 80 MHz to 6 GHz
  • Transform any Impedance Ratio, up to 4:1
  • Power Levels from 50 W to 1 kW CW
IMPEDANCE TRANSFORMING QUADS & BALUNS

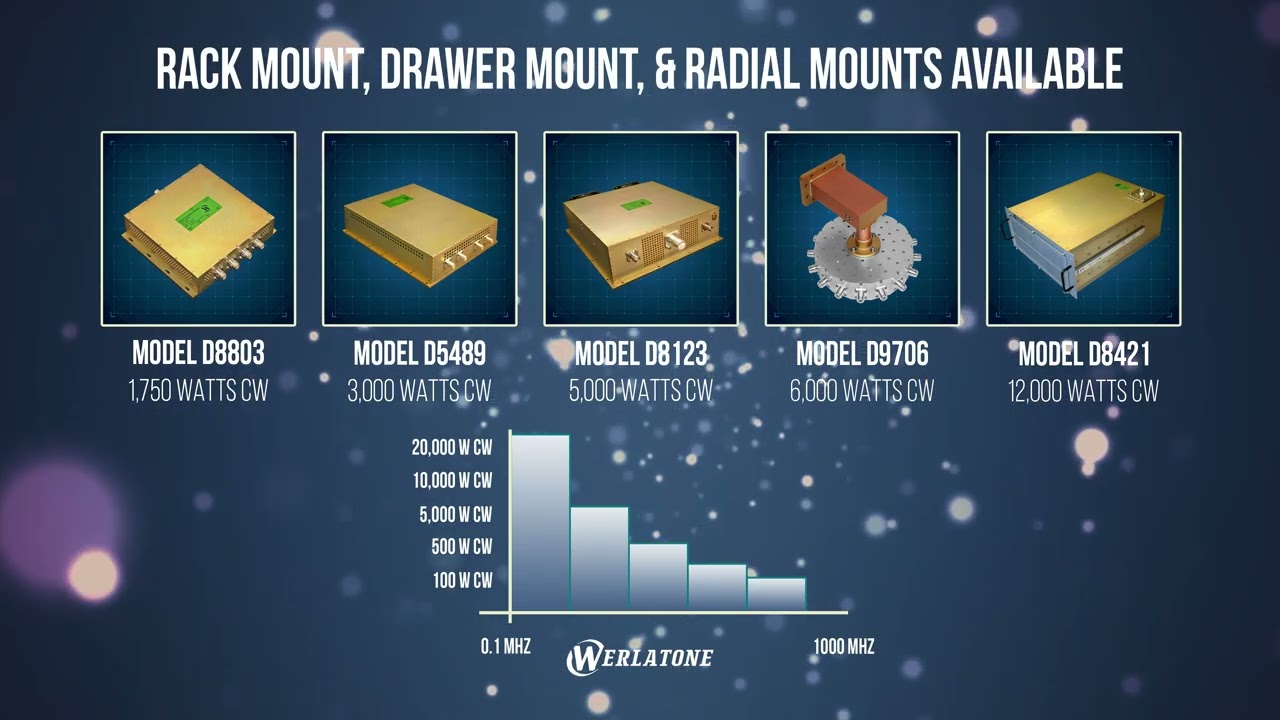

RF Combiner – Model D9706 – 16-Way In-Phase Connectorized Combiner covering the full 2700-3500 MHz band rated at 2000 W CW. RF Combiner- Model D9706 is designed for military and commercial applications and operates with less than 0.35 dB of Insertion Loss. The D9706 operates as a non-isolated combiner. Choose your specific connector configurations from a list of options. Additional connector configurations for our RF Combiners and RF Dividers, Non-Coherent Combiners and N-Way Combiners are available upon request.
RF Hybrid Coupler – QH10828 – Non-Connectorized 90° Hybrid is a High Power design and covers the full 1000 – 8000 MHz band rated at 100 W CW. RF Hybrid Coupler – QH10828 is offered for wideband amplifier applications and operates with less than 0.9 dB of Insertion Loss and better than 17 dB Isolation. The unit measures 0.65 x 0.5 x 0.07″ and is available as a Surface Mount design.
RF Hybrid Coupler – QH10541 – Non-Connectorized 90° Hybrid is a High Power design and covers the full 700 – 6000 MHz band rated at 150 W CW. RF Hybrid Coupler – QH10541 is offered for wideband amplifier applications and operates with less than 0.5 dB of Insertion Loss and better than 17 dB Isolation. The unit measures 0.86 x 0.66 x 0.09″ and is available as a Surface Mount design. Click Here to Learn More
RF Combiner – Model D11149 – 4-Way In-Phase Connectorized Combiner covering the full 700-6000 MHz band rated at 300 W CW. RF Combiner- Model D11149 is designed for military and commercial applications and operates with less than 0.6 dB of Insertion Loss. The D11149 operates as a non-isolated combiner. Choose your specific connector configurations from a list of options. Additional connector configurations for our RF Combiners and RF Dividers, Non-Coherent Combiners and N-Way Combiners are available upon request.
RF Coupler – Model C10117 – Dual Directional Coupler is a High Power design operating with 40 dB Coupling, covers the full 700-6000 MHz band rated at 250 W CW. RF Coupler – Model C10117 is designed for military and commercial applications and operates with less than 0.2 dB of Insertion Loss and better than ± 1.0 dB of Coupling Flatness. Rated Mismatch Tolerant®, the C10117 will tolerate a full reflection, at rated power. High Power, Efficiency, and Bandwidth!
CW Power limitations of a Radial Combiner structure are removed as there is no longer a Coaxial to Waveguide transition limiting your CW Power and/or higher Duty Cycles at Peak Power operation. E-Plane RF Combiner – Model D11839 is a patent pending High Power RF Combiner design offering extremely Low Loss and excellent Phase & Amplitude Balance. E-Plane RF Combiner – Model D11839 covers the full 5.3-5.9 GHz band and is rated at 8000 W CW. This Combiner class is designed to operate over the full bandwidth of a given waveguide connector. Furthermore, the CW power handling of each Combiner is only limited to the power rating of the specific waveguide connector utilized. More Bandwidth and Higher CW Power Handling.
